加工中心用工件检测软件

Basic macro software for Renishaw component setting and inspection probes for machining centres and lathes.

The Inspection Plus software package provides a more comprehensive set of probing cycles for machining centres.

About macro based programming

Renishaw's Inspection probing software comprises a set of macros that control probing motion and point data manipulation, measuring a range of common component features with input of a few parameters.

Tool and work offsets can be updated automatically based on measured dimensions. On completion of each measurement cycle it is possible to print out the results.

Some capabilities may vary by an individual controller.

Inspection software for machining centres

Available measurement cycles include:

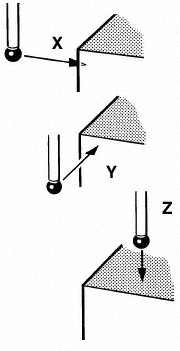

• X or Y or Z single surface measure
• web/pocket

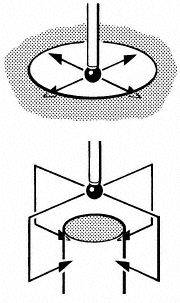

• four point bore/boss
• external corner
• angle through two bores/bosses (Fadal only)

Inspection software for turning centres

Renishaw Inspection software for turning centres offers macros for:

• single point (radial) measurement
• two-point (diameter) measurement
• rib/groove measurement
• single Z-surface measurement

Inspection software for multi-axis turning centres

• horizontal and vertical head orientations
• X, Y and Z single surface measure
• bore/boss
• web/pocket
• C axis find
