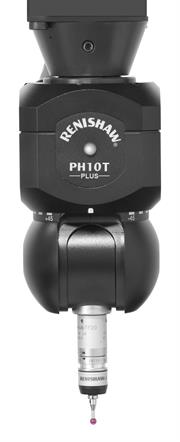

PH10T PLUS motorised indexing probe head
PH10T PLUS shank-mounted head with two-wired probe capability and an M8 thread

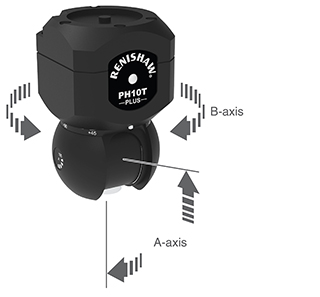

The PH10T PLUS is a motorised indexing head that mounts and re-orientates the probe repeatably to any one of 720 positions at 7.5° increments- Controlled by the PHC10-3 PLUS
- All M8 thread probes can be fitted directly onto the mount of the PH10T PLUS
- Compatible with PEL (M8) extension bars up to 300 mm (11.81 in) long
- The AM1 adjustment module (fitted between the head and the shank) corrects the alignment of the PH10T PLUS to the machine

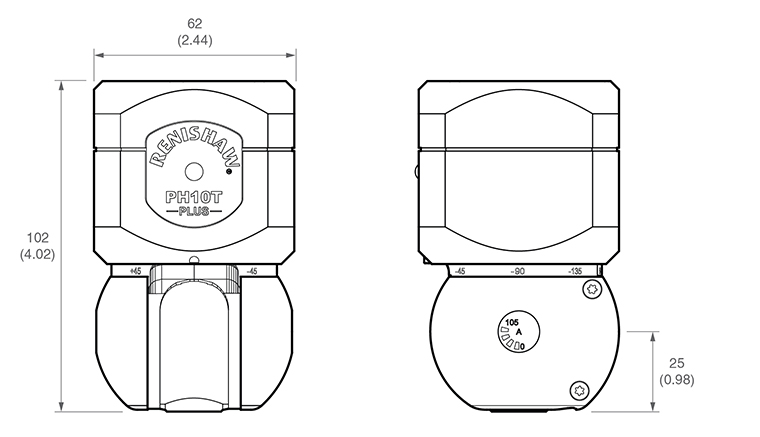

Dimensions
NOTE: Dimensions in mm (in).
Specification
Repeatability of position | <0.4 μm (0.00002 in) @ 100 mm from centre of A-axis rotation |
Positioning | |
Step | 7.5° |
A-axis 0° to 105° | 15 positions |
B-axis -180° to +180° | 48 positions |
Total | 720 positions |
Probe mounting | |
PH10T PLUS | M8 thread, 18 mm diameter bush face |
PH10M PLUS / PH10MQ PLUS | Multiwired autojoint |
Dimensions from quill face | |
XY (all) | 62 mm |
Z (PH10T PLUS) | 102 mm |
Z (PH10M PLUS) | 117 mm |
Z (PH10MQ PLUS) | 73 mm |
Weight | |
PH10T PLUS | 595 g |
PH10M PLUS | 620 g |
PH10MQ PLUS | 730 g |
System operating temperature | +10 °C to +40 °C (+50 °F to +104 °F) |
System storage temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
The PHC10-3 PLUS is powered from the ac mains supply via an IEC 320 connector.
The operating voltages of the unit are as follows:
100 Vac - 240 Vac +10%, -15% 47 Hz - 66 Hz, 30 W maximum
Environmental conditions
The following environmental conditions comply with those defined in BS EN61010 - 1:2001:
Indoor use | IP30 (no protection against liquids) |
Altitude | Up to 2000 m |
Operating temperature range | 0 °C to +50 °C |
Storage temperature range | -10 °C to +70 °C |
Relative humidity | 80% maximum for temperatures up to +31 °C |
Pollution degree | 2 |
