RUP1 REVO ultrasonic probe

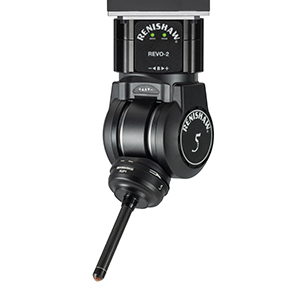

The RUP1 probe brings ultrasonic thickness inspection to CMMs as part of the REVO 5-axis multi-sensor measuring system
The RUP1 is an ultrasonic thickness measurement probe that uses an elastomer tip ball to provide coupling between the probe and material.
Saleable countries
Regulated and certified to be sold into the following countries:
Austria | Denmark | Ireland | Netherlands | Sweden |
Belgium | Estonia | Israel | New Zealand | Switzerland |
Brazil | Finland | Italy | Poland | Thailand |
Bulgaria | France | Japan | Portugal | UK |
Canada | Germany | Latvia | Romania | USA |
China | Greece | Lithuania | Singapore | |
Croatia | Hong Kong | Luxembourg | Slovakia | |
Cyprus | Hungary | Malta | Slovenia | |
Czech Republic | India | Mexico | Spain |
Dimensions

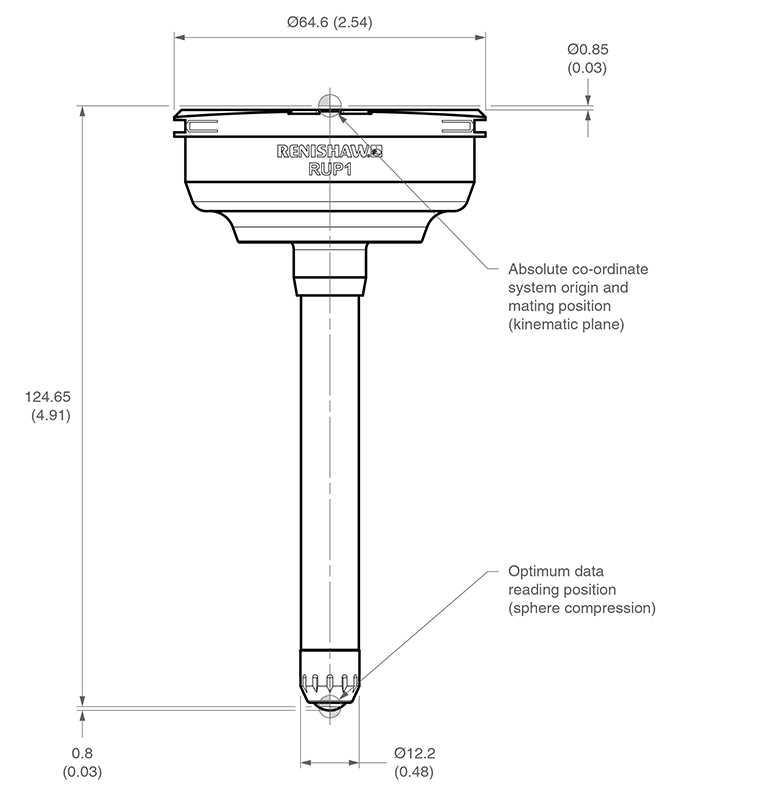

RUP1-175
NOTE: Dimensions are shown in mm.

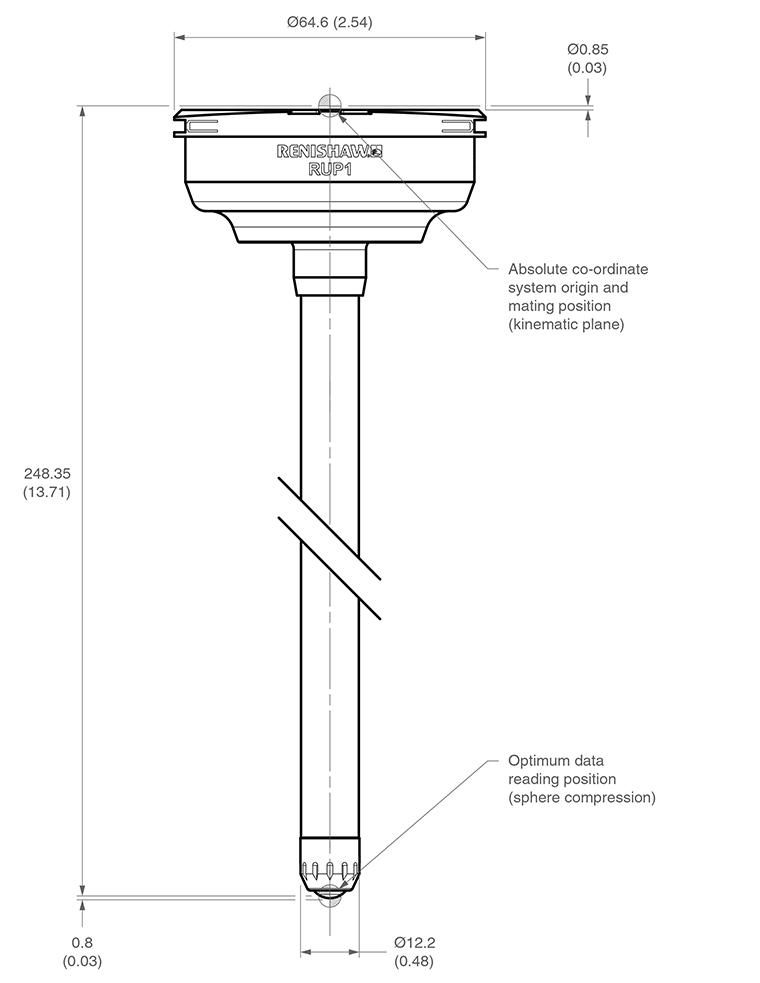

RUP1-300
NOTE: Dimensions are shown in mm.

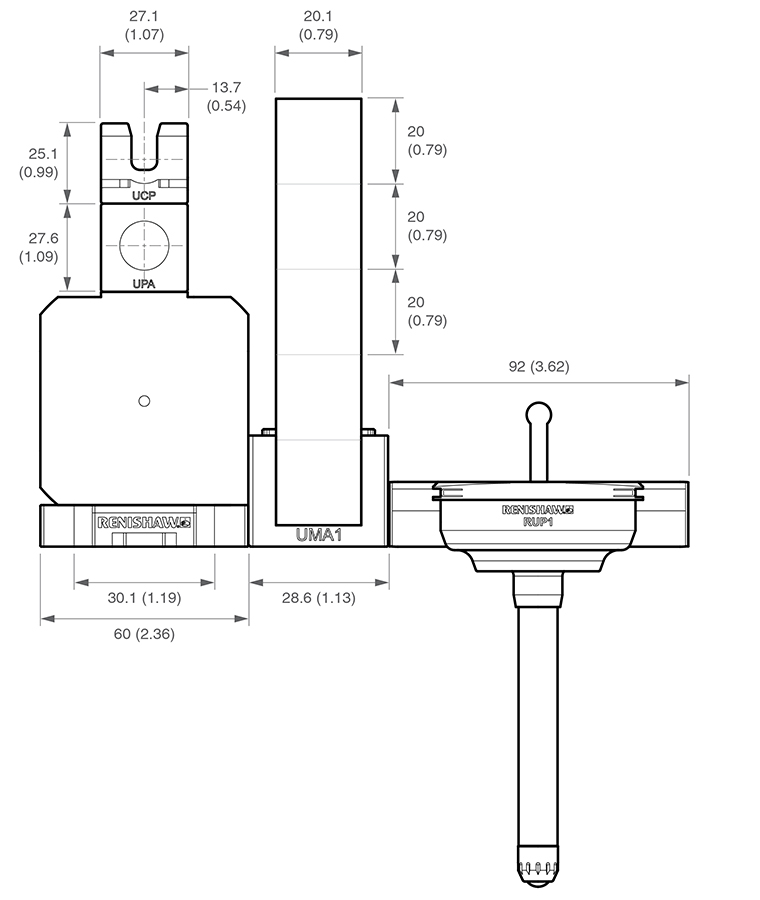

RUP1 probe change system
The RUP1 system requires 182 mm (7.17 in) of MRS rail length to mount the calibration and probe holder.
NOTE: Dimensions are shown in mm.
Part number | |
RUP1-175 system kit | A-6159-0001 |
RUP1-175 probe only | A-6159-0010 |
RUP1-300 probe only | A-6259-0030 |
RUP1 UMA1 kit | A-6159-1501 |
RUP1 calibration kit | A-6159-1503 |
RUP1 elastomer balls (pack of 10) | A-6159-1508 |
NOTE: Please visit the REVO-2 page for a full list of REVO-2 system and associated product part numbers.
