Correlate™模块结合成像技术
充分发挥光谱仪的功能

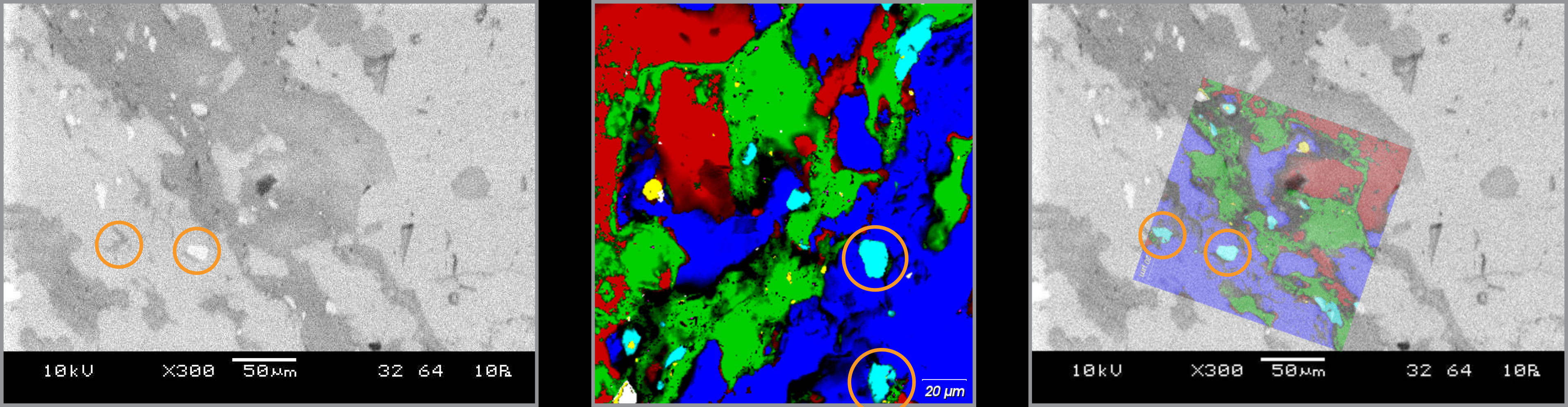

Correlate™模块可将拉曼结果与许多常用的显微光谱仪的结果进行比较,包括扫描电子显微镜 (SEM)、荧光、原子力显微镜 (AFM)、红外和光学显微镜。
特征概览
- 坐标管理器 — 将常用显微光谱仪上的坐标数据导入并转换到雷尼绍拉曼系统上
- 图像对齐工具 — 具有平移、旋转、大小调整和高宽比控制功能,能够以不同的透明度叠加图像
- 批量测量 — 在样品上的不同位置自动执行相同的拉曼测量

易于使用
只需记录样品上三个或三个以上参考点和数据采集点的坐标数据。在不同显微光谱仪之间转移样品后,Correlate模块可引导用户定位到样品上所关注的区域。因此,用户能够从相同的位置采集数据,并叠加图像以进行补充解释。
查看完整图像

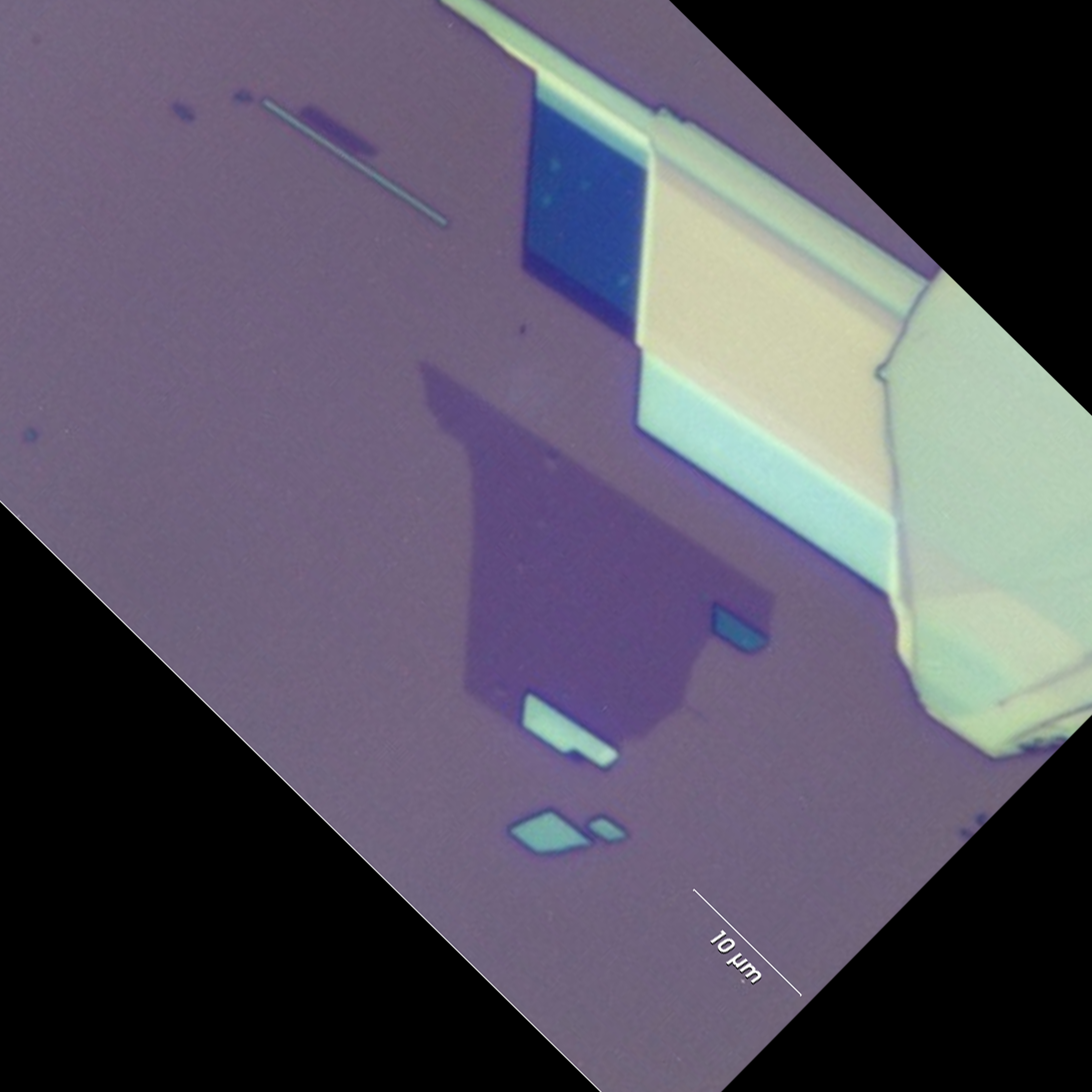

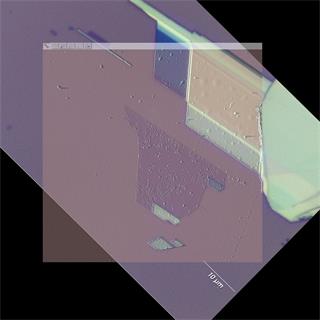

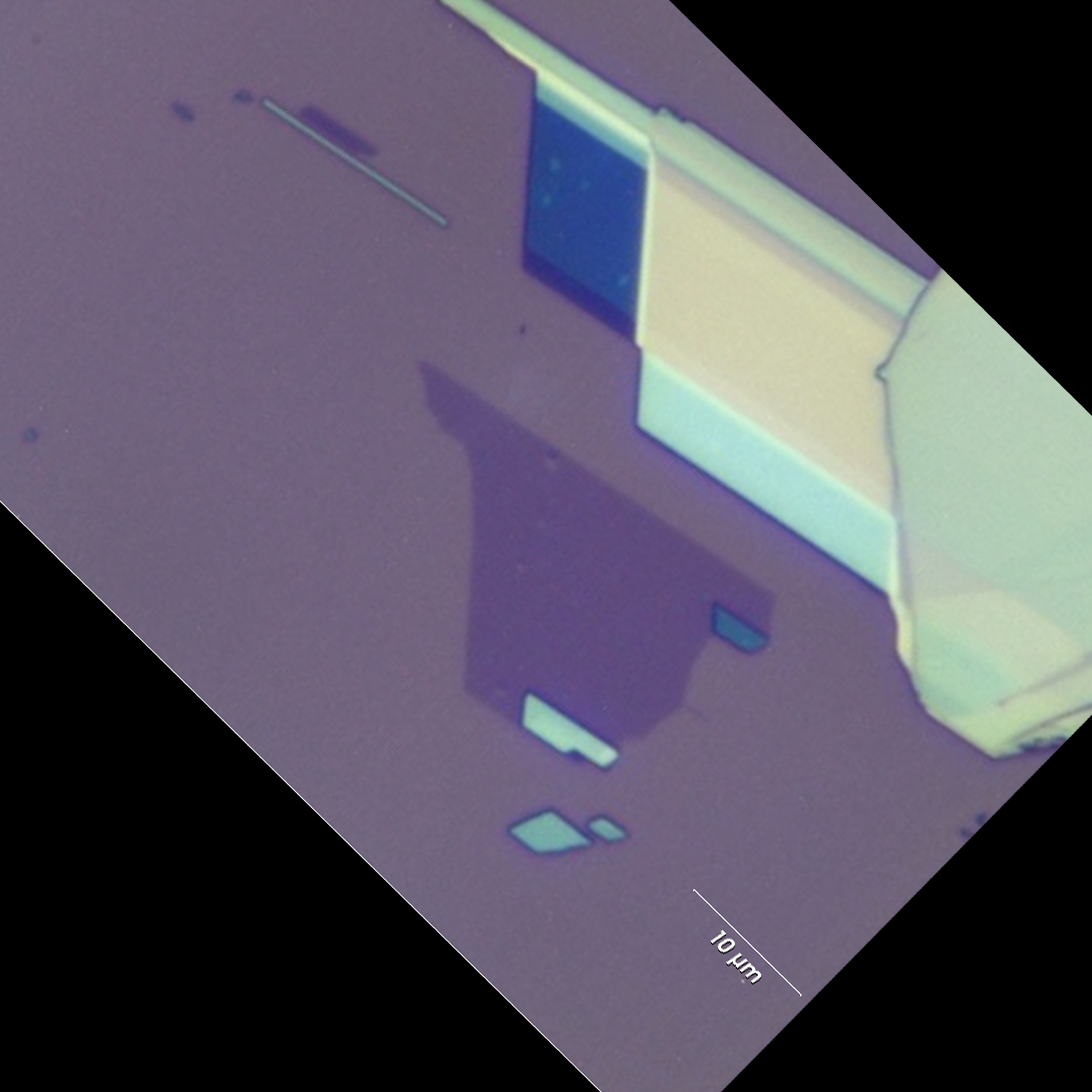

在这张ReS2薄片图像上移动游标,即可查看相关联的AFM图像与inViaTM 拉曼分析仪拍摄的白光图像。将AFM图像中的形貌细节以及白光图像中不同晶畴的图像结合在一起,用户可以通过一张图像更全面地了解样品。
Correlate模块是雷尼绍WiRE 5.3软件的一部分,可应用于inVia共焦显微拉曼光谱仪,Virsa™拉曼分析仪和RA800系列仪器。
下载更多资料
-

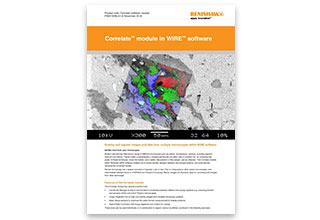

Product note: Correlate module in WiRE software [en]
The Correlate module within Renishaw WiRE software enables you to easily transfer samples between microscope systems, and automatically visualise the combined results.
-
Application note: Using the Correlate™ module to study a mineralogical section with Raman and SEM [en]
An application note detailing the use of the Correlate™ module of the WiRE™ software to combine a Raman and SEM image of the same section of a mineralogical sample and in so doing creating more powerful data, by combining the chemical and physical information of the two techniques.
