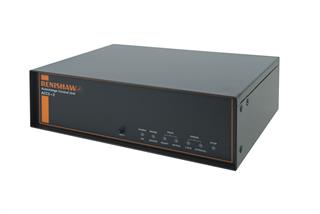

ACC2-2 legacy controller

Technical specifications

Documents

Part numbers

ACC2-2 autochange controller for ACR1

Installation and user's guides

User guide: Autochange system ( H-1000-5090)
User guide: Autochange system ( H-1000-5090)
Renishaw’s ACR1 is a fully integrated 8 port probe exchange system. Mounted within the CMM’s working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.
[2.6MB]
Installation guide: Autochange system (H-1000-6010) - legacy
Installation guide: Autochange system (H-1000-6010) - legacy
Renishaw's autochange equipment is the world's first integrated CMM probe exchange system. Mounted within the CMM's working envelope, the autochange system facilitates fast, automatic probe exchange without the need for re-qualification of the probe assembly.
[608kB]
Installation guide: Autochange system (H-1000-6012)
Installation guide: Autochange system (H-1000-6012)
Installation and programmer's guide for Renishaw's autochange system
[3.5MB]

	Part number
ACR1 8 port autochange rack kit	A-1051-4000
ACC2-2 autochange controller for ACR1
ACC2-2 autochange rack controller (RS232 only)	A-1520-0101
ACR1 accessories and cables
ACR1 MK (H) horizontal mounting kit	A-1051-0441
ACR1 MK (V) vertical mounting kit (to mount the ACR1 vertically both mounting kits need to be ordered.)	A-1051-1308
ACR1 additional 100 mm leg	M-1051-0147
ACR1 additional 200 mm leg	M-1051-0148
ACR1 long port replacement kit	A-1051-7077
ACR1 short port replacement kit	A-5036-0049
ACR1 mixed port replacement kit	A-1051-7076
ACR3 autochange rack
4 port passive probe and extension bars autochange rack. Requires an MRS kit for mounting on to a CMM. If 8 ports are required, 2 ACR3s can be mounted on one MRS rail.
ACR3 4 port autochange rack kit	A-5036-0005
ACR3 8 port autochange rack kit	A-5036-0500
