HCU1 legacy hand controller

The HCU1 is a hand control unit for use with Renishaw motorised probe head systems

  • HCU1 hand control unit Used with the PHC10-2 and PHC10-3 PLUS to drive the PH10 motorised probe head to the required position
  • Used for setting up a part, operator controlled inspection and teach-cycle programming
  • 2-speed action (jog and rapid move)
  • LCD showing head position, system status and error analysis
  • Transmit button for teach cycle

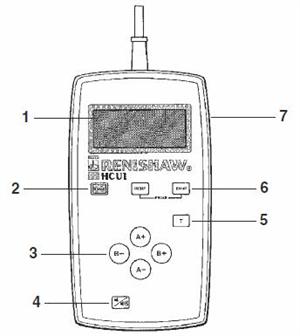

hcu1_fig_3

Key

Description

1

LCD display

2

Head initialisation key

3

Direction keys (PH50 only)

4

Audible key press confirmation toggle key

5

Transmit key

6

Probe function keys

7

LCD contrast adjustment
