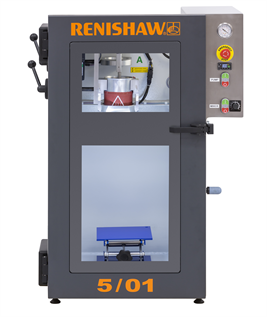

5/01 ULC vacuum casting machine
Create high quality parts in a wide range of resins as well as high quality wax investment casting masters.
Features and benefits
- Mould sizes up to 520 mm × 420 mm × 425 mm
- Small footprint bench top machine - ideal for small workshops
- Manual pouring - minimal maintenance
- Push button operation - simple interface
About
The Renishaw 5/01 ULC is designed as an entry level vacuum casting solution and is particularly well suited to small businesses and educational establishments.
By keeping the control system simple and employing manual control for the resin pouring within the chamber, the 5/01 ULC is incredibly user friendly.
VC module
For plastic prototypes and low volume production in vacuum casting polyurethane resins.
Heated cup option
For creating wax master models for the investment casting process and low melting alloys.
Find out how our vacuum casting systems work
-
Vacuum casting products and process

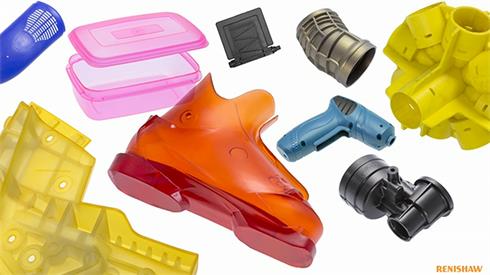

Renishaw provides a full solution for vacuum casting with a range of machines, from manual to high capacity computer automated, for the economic production of short run, end use parts and prototypes - up to 50 parts from a single mould.
Specifications
Dimension housing | 1030 mm x 770 mm x 770 mm |
Maximum mould size | 520 mm x 420 mm x 425 mm |
Casting capacity | 0.8 L |
Power supply* | 230 V/50 Hz |
Pump capacity | 25 m³/h |
Ultimate vacuum | 0.5 mbar |
Gross machine weight | 167 kg |
* Other power supply configurations are available
Brochure
-
Brochure: Vacuum casting systems
Renishaw vacuum casting systems are ideal for small batch production. A single silicone mould can be used up to 50 times before retooling is required.
